LT-C1 Containerized Battery System

A pre‑integrated, transportable power station. One LT-C1 contains multiple LT‑S1 systems.

LT-C1 Containerized Battery System

Megawatt‑Scale Energy for Marine & Shore

LT-C1 is an independent energy storage unit formed by installing LT-S1 systems into a standard container (20ft or 40ft). It is suitable for large vessel shore power replacement, battery‑swapping for electric ferries, or microgrids at ports/islands. Inside: air conditioning, fire suppression, monitoring, high-voltage distribution. Outside: only power and communication connections required. Each LT-C1 is customized to customer power and energy needs by adjusting the number and configuration of internal LT-S1 systems.

CONTACT

Ready to use

Factory assembled and tested; only lifting and connection on site.

Ready to use

Megawatt scalability

1–2 MWh per container; multiple in parallel exceed 10 MWh.

Megawatt scalability

High safety

Built-in FM‑200/aerosol fire suppression, cell‑level thermal isolation.

High safety

Remote O&M

Optional 4G/satellite for remote monitoring of temp, voltage, fire status.

Remote O&M

Swap‑ready

Suitable for battery‑as‑a‑service ferries or tugs.

Swap‑ready

Modular internal layout

Each LT-S1 can be maintained independently, reducing downtime.

Modular internal layout

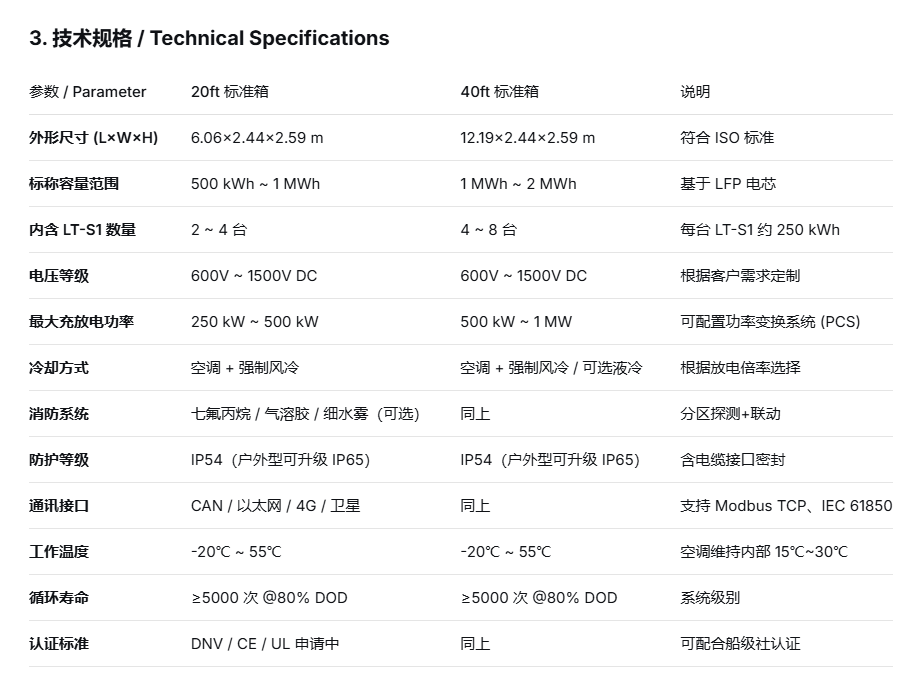

Technical Specifications

System Architecture

Battery zone

2–8 LT-S1 cabinets, each containing multiple LT-P1 modules, operating independently.

Power distribution zone

High‑voltage busbar cabinet (circuit breakers, fuses, pre‑charge circuit), DC bus.

Thermal management zone

Industrial air conditioner (or liquid chiller) + air ducts, maintaining constant temperature.

Control & fire suppression zone

System controller (EMS gateway), fire alarm panel, smoke/heat/gas sensors, emergency stop.

Customizable Options

Voltage

48V / 96V / 144V / 192V / 400V / 800V, or any intermediate voltage (12V steps)

Total capacity

10 kWh ~ 1 MWh (above 1 MWh, LT-C1 recommended)

Number of LT-P1 modules

4–20 per standard cabinet; multiple cabinets for larger systems

BMS strategy

Standard protection / Long‑life mode / High‑power mode / Custom thresholds

Customizable Options

LT-C1 is a turnkey solution for high‑capacity storage and battery swapping. Provide your project parameters (capacity, voltage, application scenario), and we will deliver a complete container system design, quotation, and certification support.
